Name: Pro/line

Product specification: 2.2m, 2.5m, 2.8m

Design Speed 320m/min, Production Speed 270m/min

Market segment: medium – high



·Machine specifically designed for the Asian market, taking in consideration the future trends

·Designed Fosber Italy with the concept “less is more”, based on the experience of the Asian, European and USA Market

·Top level brands: Allen Bradley, Rossi, SMC Lenze, SKF, Rexroth E&L, Renova, etc

·Designed to reduce the number of operators thanks to the fully automatic system and the Syncro controller

·Designed for more than 400 order change per shift, with gapless technology at high speed

·Designed for wide range of paper, flutes and preprint operation

·Designed to be user-friendly, having the corrugator divided in strategic zone for the operator

·Designed for environmental protection and energy saving: glue, steam, lubrication and electricity

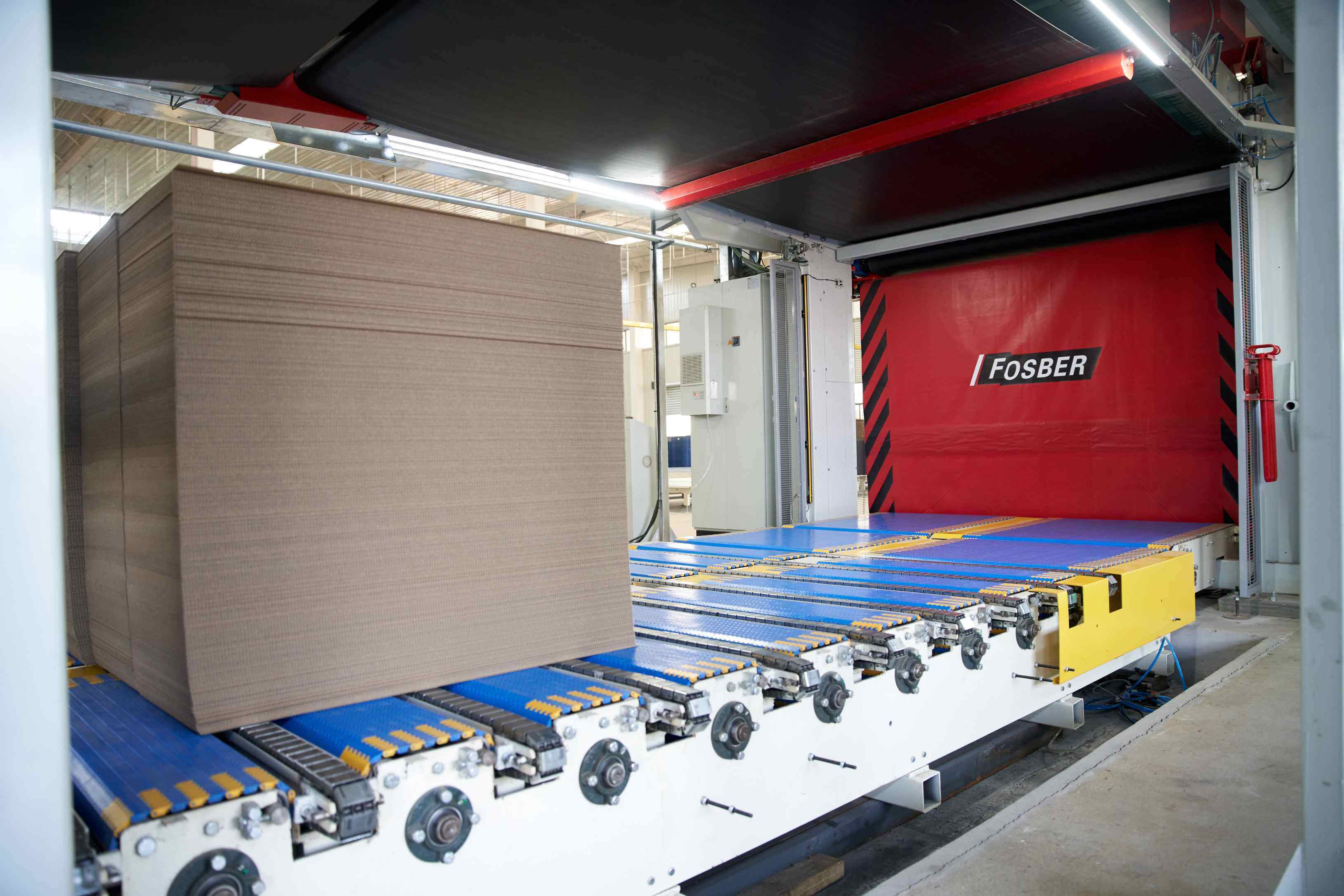

This brand new downstacker is fully automatic and is available as a single or double level configuration.

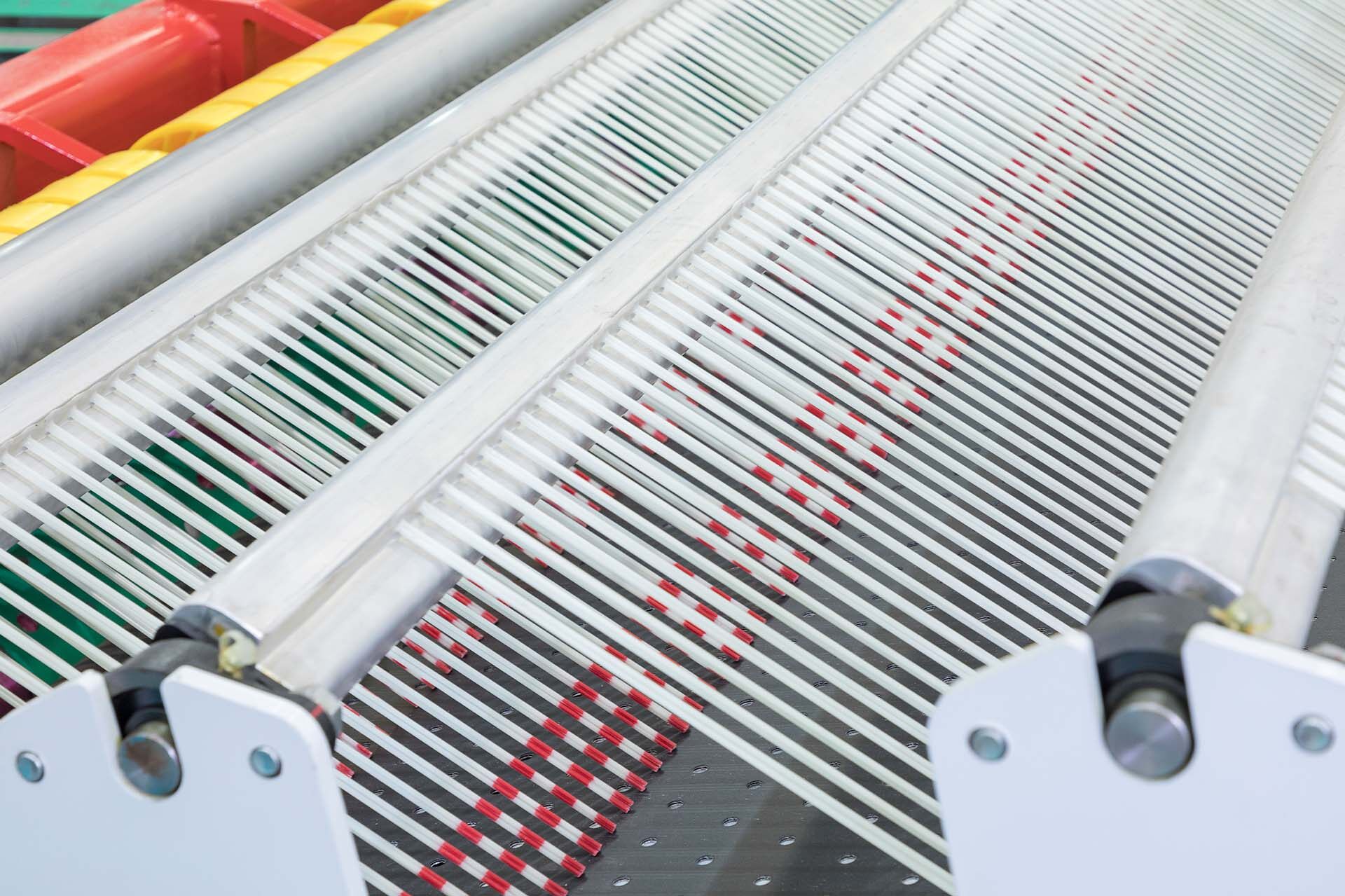

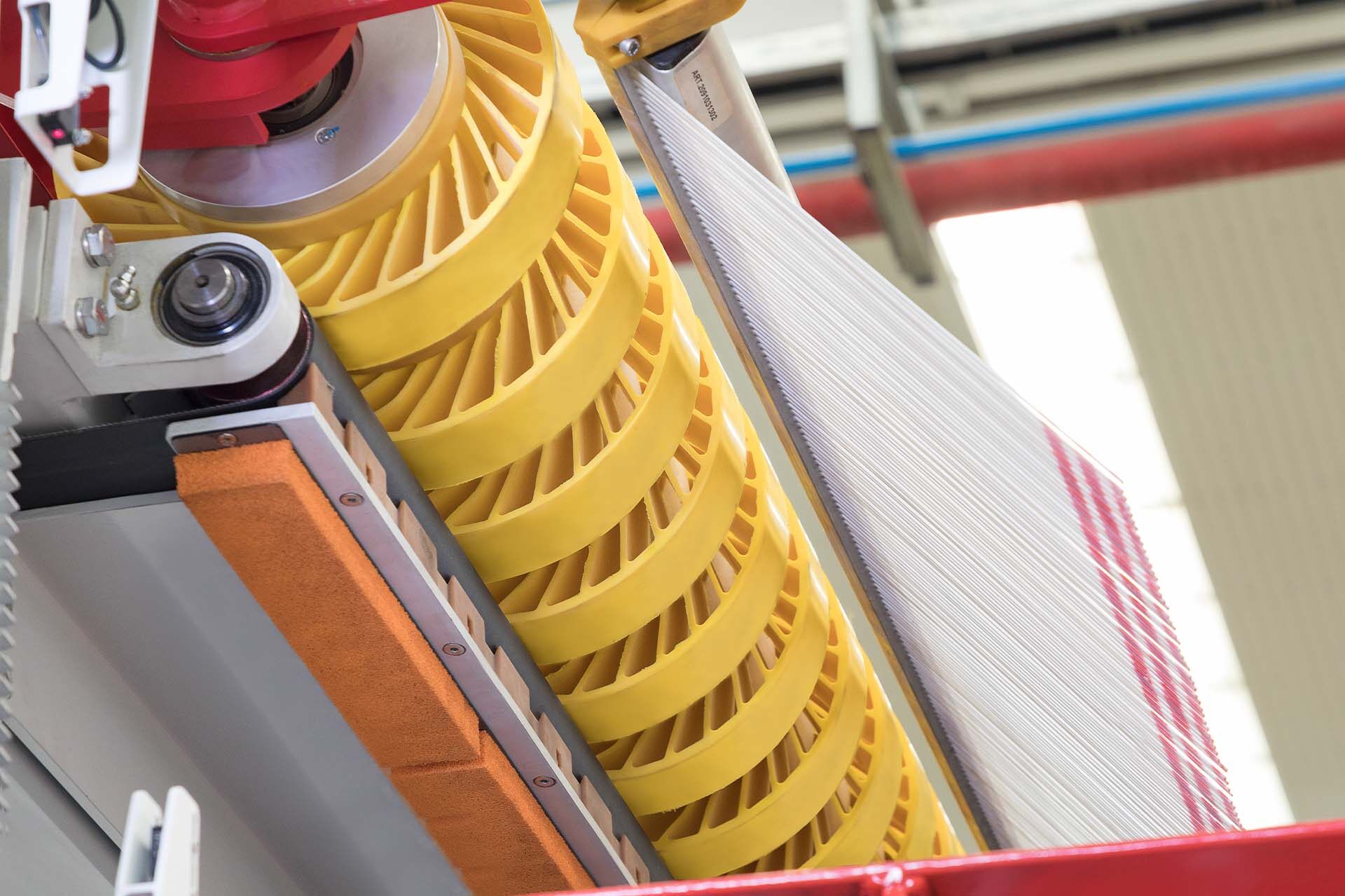

From the dry-end sheets are delivered on to the downstacker where they are first shingled and aligned on the braking section via a guided vacuum belt and an automatically controlled brush group assembly. The control system, according to a personalised pressure curve set at each individual installation, dynamically adjusts the variable pressure on each of the five brushes according to the sheet width, sheet length, the flute type, and actual running line speed being run

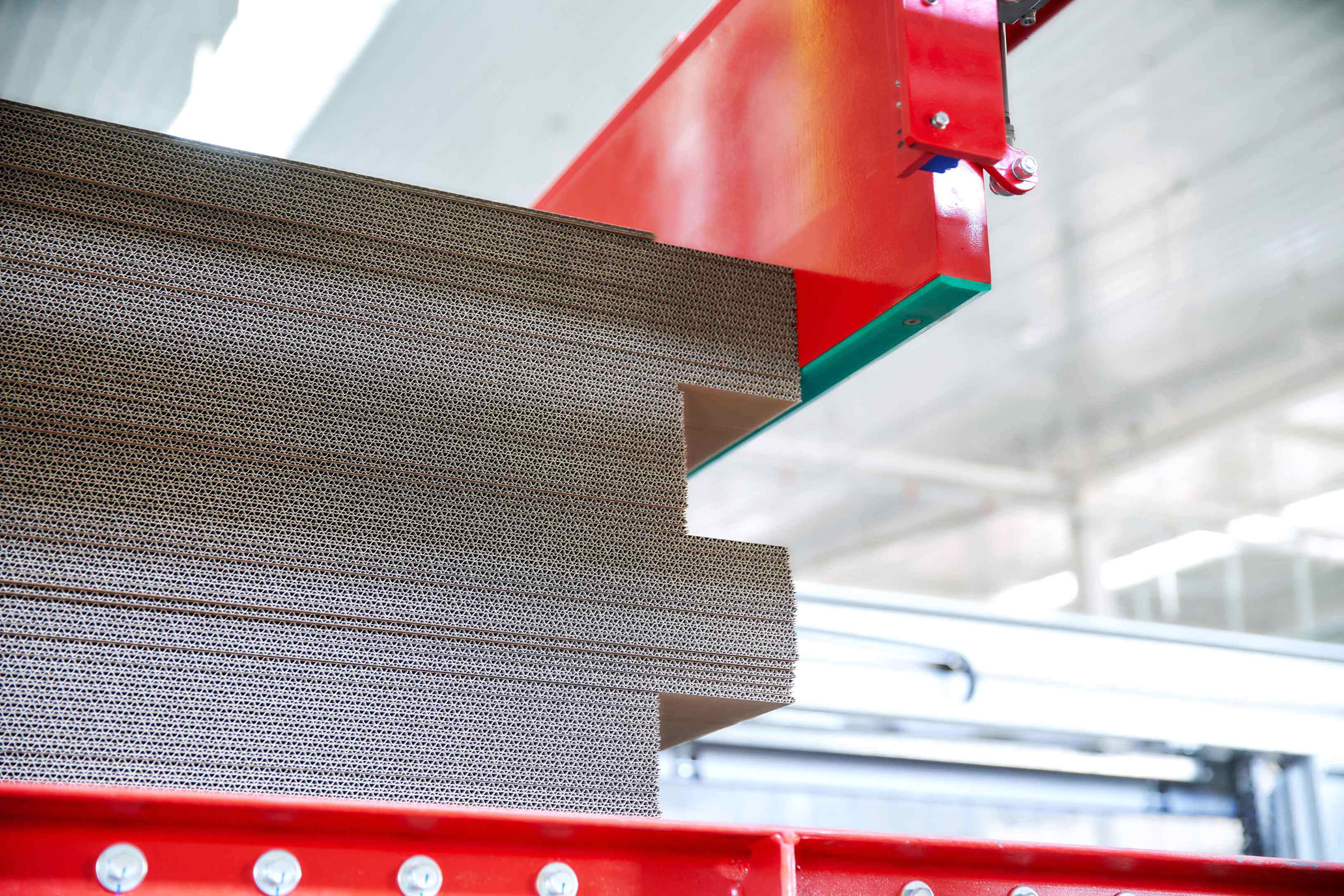

Stack changes are accomplished via a moving clamp. The result is that stack/order changes can be carried out at the highest line speeds, while continuously maintaining the best stack quality available in the market.

Thanks to the multiple independent belt sections and intelligent machine program, multiple orders can be managed on the stacker at the same time, ensuring very short order capability.  A counterweight arrangement on the stacker elevator decks reduces stack ejection cycle times by more than one-third, not only improving stack quality but also increasing production speed capabilities.


To further reduce the cycle time this machine is equipped with an in-line reverse discharge feature that allows the fast and stable removal of the narrowest sheet sizes.  Alternatively it can be equipped with a standard lateral discharge according to each customer's needs and space requirements.
